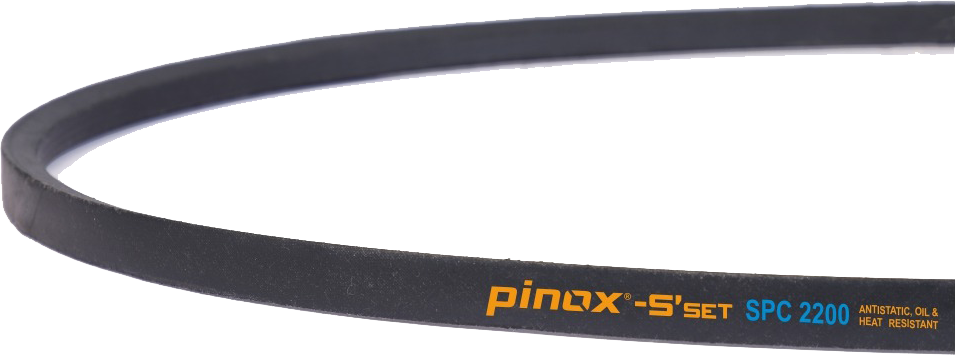

Features of PINOX - S'set WEDGE WRAPPED V-BELTS
  • Oil & Heat Resistance
  • Antistatic
  • Matched Set
  • Reduced Slippage
  • Excellent Stability Under Shock conditions.
  • Longer Service life
Application
All types of general and heavy industrial drives.
Section Cross Section Dimension Belt Range
Top Width (mm) Thickness (mm) Angle (Deg) Min Max
SPZ 10.0 8.0 40 2000mm" 10000mm"
SPA 13.0 10.0 40 2000mm" 10000mm"
SPB 17.0 14.0 40 2000mm" 15000mm"
SPC 22.0 18.0 40 2000mm" 15000mm"
Belt Length Calculation
Section Lp to La (mm) Li to Lp (mm) Li to La (mm)
SPZ 13 37 50
SPA 18 45 63
SPB 28 60 88
SPC 30 83 113
