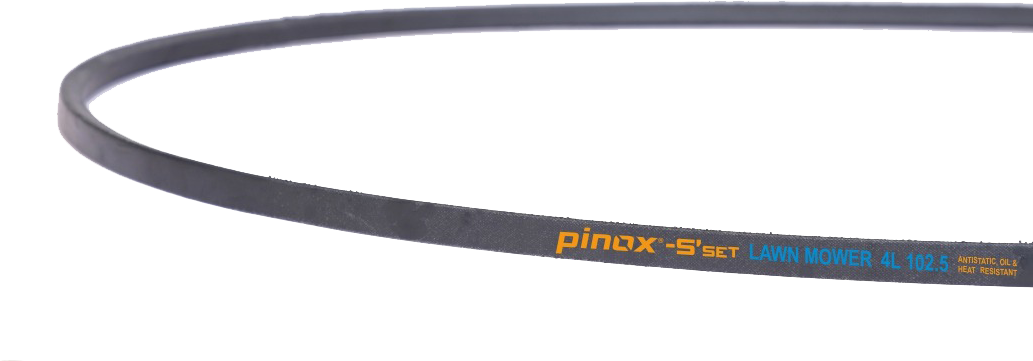

Features of PINOX - S'set LAWN MOWER V-BELTS
  • Oil & Heat Resistance
  • Antistatic
  • Reduced Slippage while clutching
  • High Tensile Strength and Low Stretch
  • Excellent Abrasion & Tear Resistance
Application
Lawn mower, Snow blower
Section Cross Section V-Belt Dimension Belt Range
Top Width (mm) Thickness (mm) Angle (Deg) Min Max
3L 10.0 6.0 40 15" 195"
4L 13.0 8.0 40 18" 180"
5L 17.0 10.0 40 22" 600"
Belt Length Calculation
Section Lp to La (mm) Li to Lp (mm) Li to La (mm)
3L 16 22 38
4L 17 33 50
5L 26 43 69
